Pipe is The nominal diameter is divided into equal parts and constant, its nominal diameter means an internal diameter of the tube substantially. Therefore, always it has a constant outer diameter larger than the nominal diameter, and the number scheduled to appear differently than the thickness of the pipe wall by pressure.Thus, pipe fittings also marked with a nominal diameter has been internationally standardized by the keyed to the outer diameter of the nominal diameter.

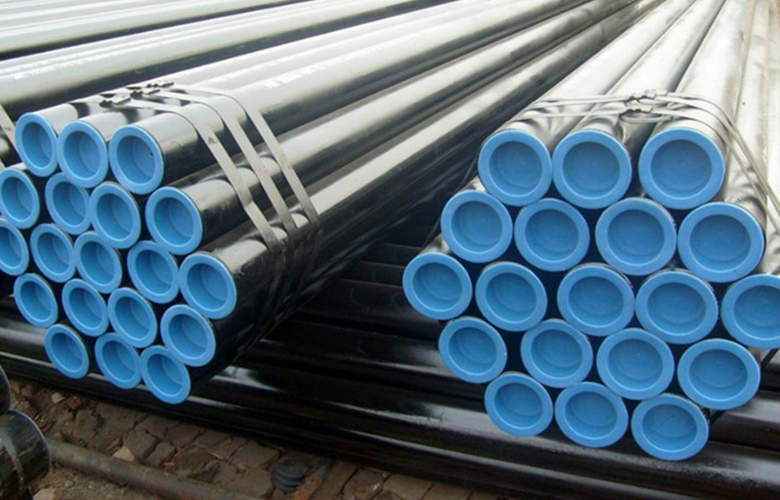

Tube is Mainly used in non-ferrous metal or non-metal pipe and is the production, as it does not have the thickness of the pipe wall as the pipe because of economical problems. Along four tubes indicates the tube diameter to the nominal diameter and the outer diameter without the thickness of the pipe wall are shown in the actual wall thickness of no schedule number. Tubes are used is important for the small pipes inside the unit, such as heat exchangers, instrumentation piping and compressor, boiler and chillers.

• We have been involved in the production of goods which require smooth surfaces and high-precision shapes in large quantity and which is not suitable as a machining work because of various materials and complicated shapes.
• Our finished products have come out 100% perfect that our products would be able to help you save the operation of machines and equipment in your factory. Our sophisticated technology acquired from years experience will meet the very demands of our customers in many phases.

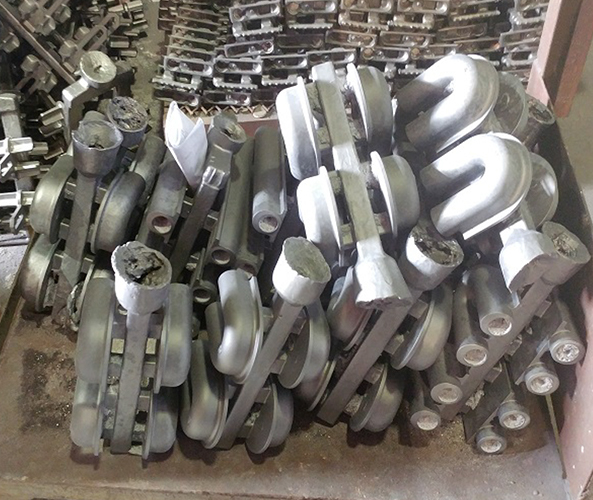

• BOILER U-BEND
• BOILER SPECIAL TUBE
